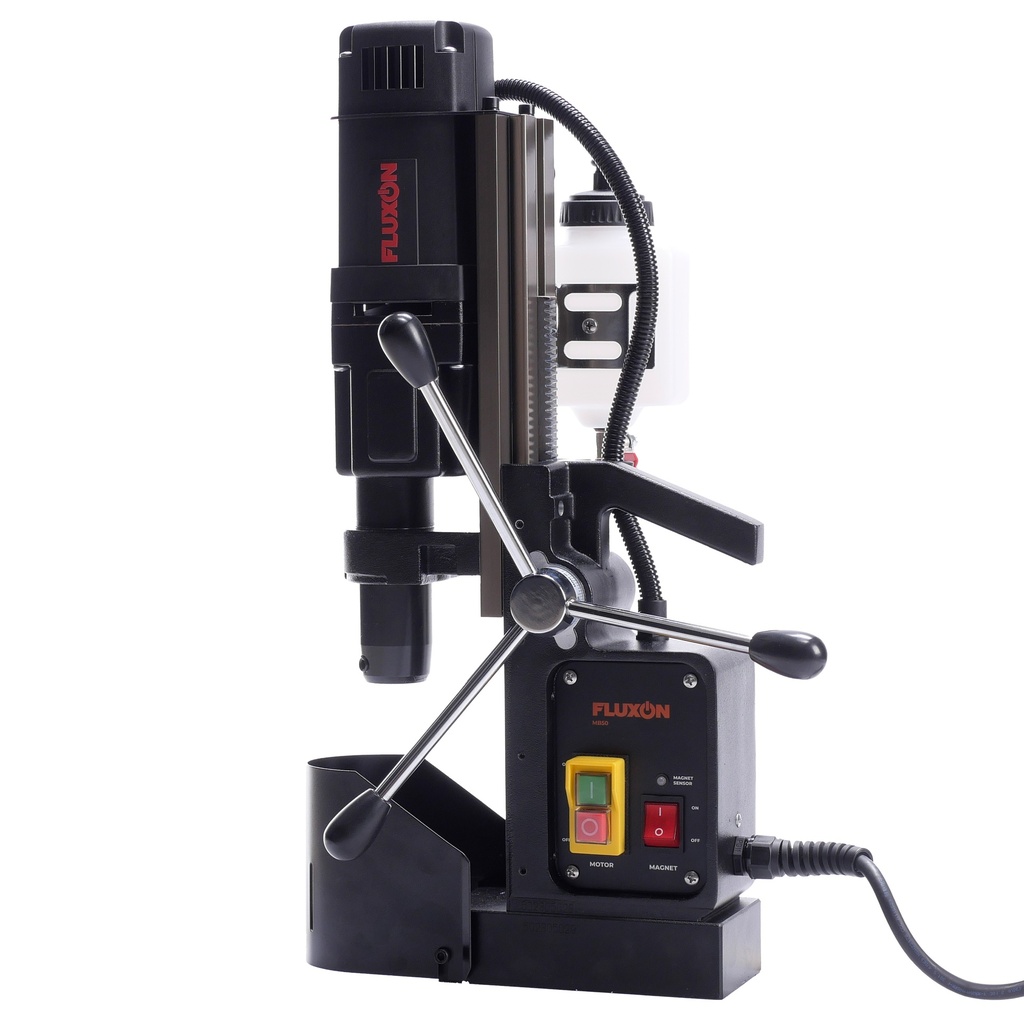

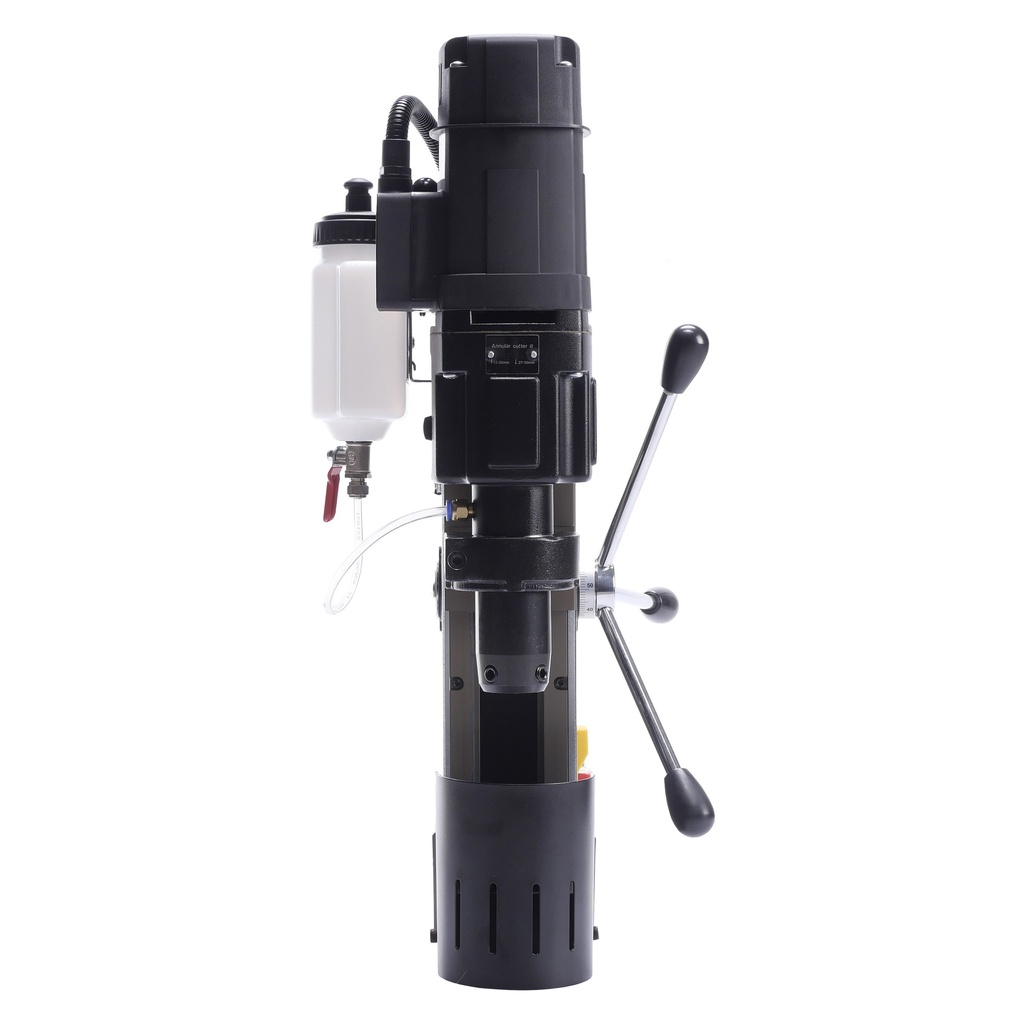

MB50
Magnetic drilling machine 50 mm
- 2 speed gearbox
- 1600 kg magnetic force
- 50mm Cuting capacity
- Powerful motor
- Integrated cooling system
| Motor power | 1250 W |
|---|---|
| Voltage | 220 - 240V |
| Frequency | 50/60 Hz |
| Stroke | 170 mm |
| Speed loaded | 1st - 235 rpm / 2nd - 425 rpm |
| Speed unloaded | 1st - 380 rpm / 2nd - 690 rpm |
| Total power | 1250 W |
| Annular cutters | Ø 12 - 50 mm |
| Twist drills | Ø 1 - 20 mm |
| Countersinking | Ø 10 - 50 mm |
| Magnet (L x W x H) | 168 x 84 x 49 mm |
| Magnetic force | 1600 kg |
| Spindle (Weldon) | 19.05 mm |
| Length | 250 mm |
| Width | 150 mm |
| Height | 385 mm |
| Weight | 12.8 kg |
Fluxon is available through our dealer network. EAN 8720028108237
Description
Crafted for power and efficiency, the Fluxon Magnetic Drilling Machine stands out for your heavy-duty drilling needs. The Magnetic Drilling Machine is designed with a powerful motor, integrated cooling system and a compact, lightweight structure. Perfect for a variety of heavy-duty applications that require precision and power.
