MB100

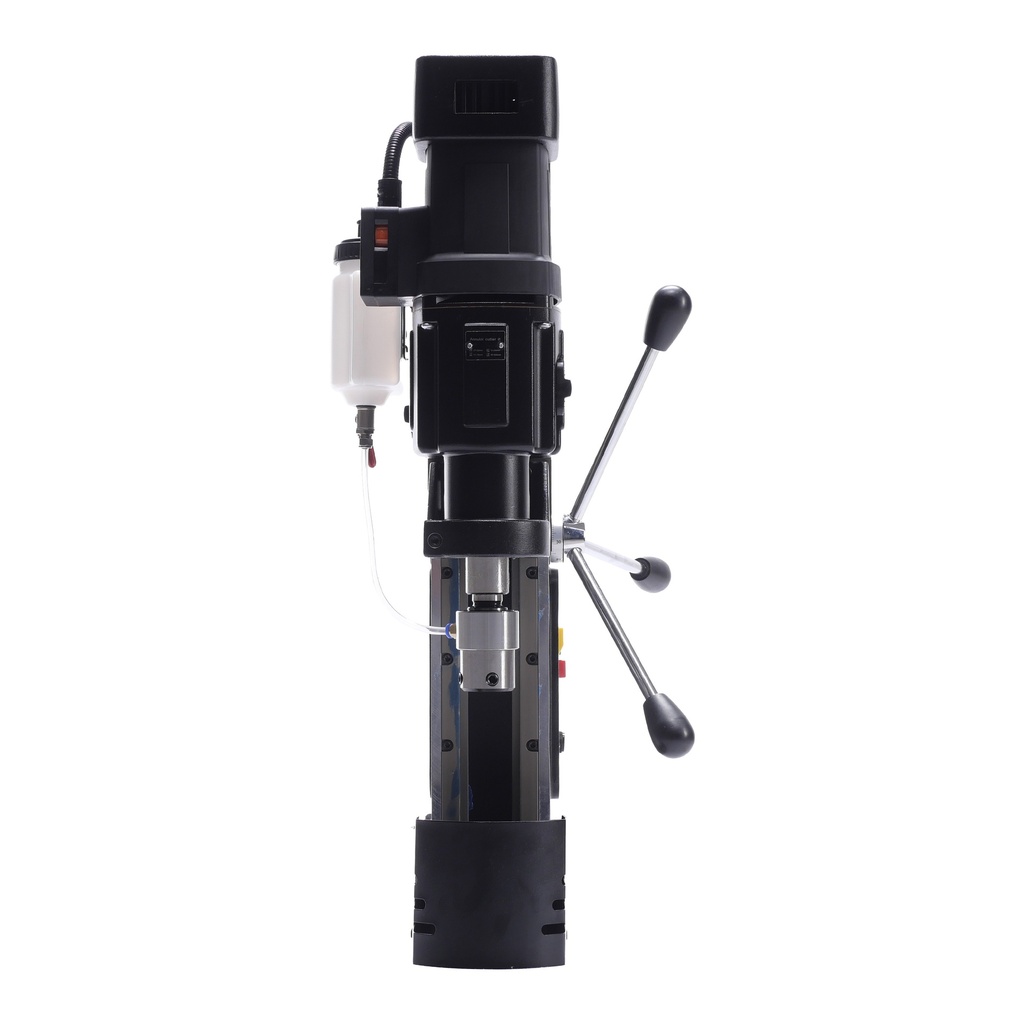

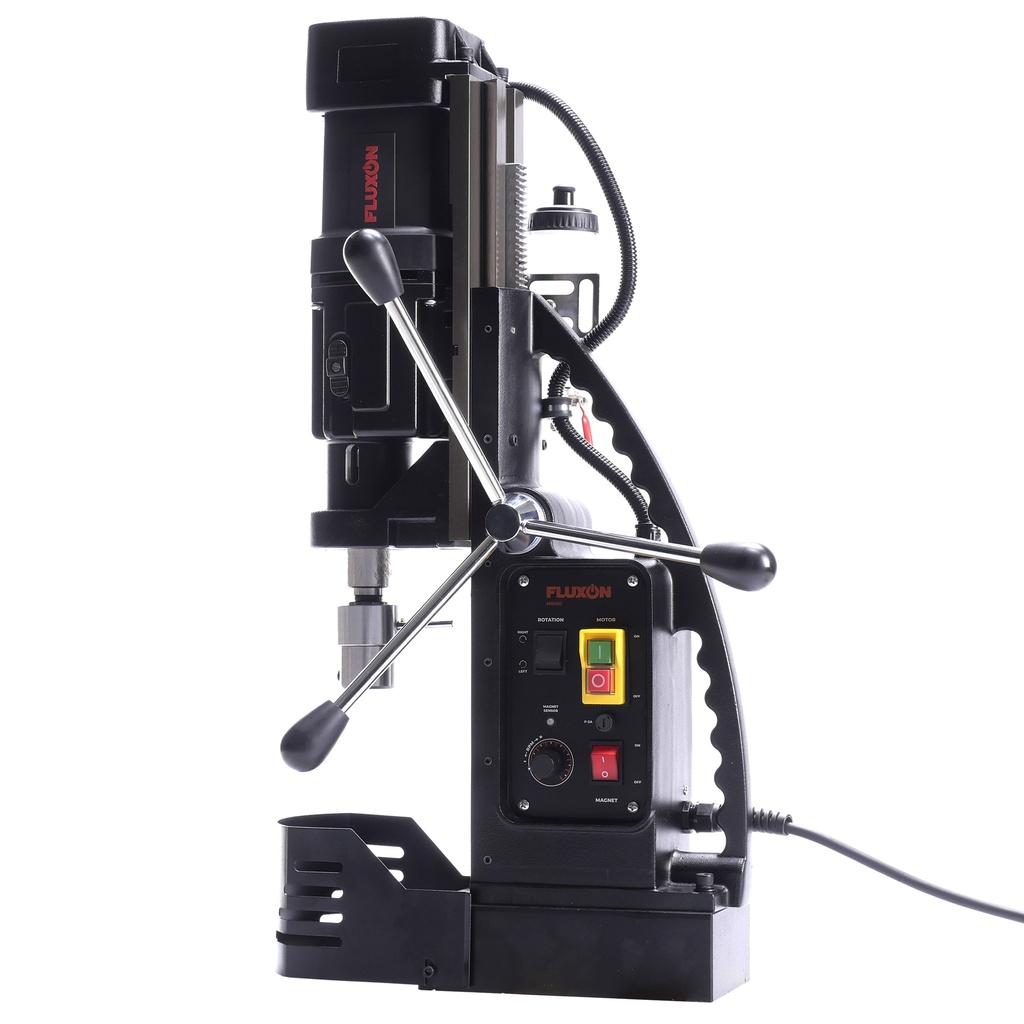

Magnetic drilling machine 100 mm
- Magnetic force 2500kg
- Four speed gearbox
- Suitable for threating
- Stepless adjustable speed
- Powerful motor
| Motor power | 1800 W |
|---|---|
| Voltage | 220 - 240V |
| Frequency | 50/60 Hz |
| Stroke | 260 mm |
| Speed loaded | 1st - 85 rpm/ 2nd - 152 rpm/ 3rd - 270 rpm/ 4th - 480 rpm |
| Thread size | M3 - M30 |
| Speed unloaded | 1st - 40 - 110 rpm/ 2nd - 65 - 180 rpm/ 3rd - 140 - 380 rpm/ 4th - 220 - 610 rpm |
| Total power | 1950 W |
| Annular cutters | Ø 12 - 100 mm |
| Twist drills | Ø 1 - 31.75 mm |
| Countersinking | Ø 10 - 105 mm |
| Magnet (L x W x H) | 220 x 110 x 64 mm |
| Magnetic force | 2500 kg |
| Spindle (Weldon) | MT3 19.05 mm |
| Length | 350 mm |
| Width | 200 mm |
| Height | 520 mm |
| Weight | 26.3 kg |
Fluxon is available through our dealer network. EAN 8720028108244
Description
Crafted for power and efficiency, the
Fluxon Magnetic Drilling Machine stands out for your heavy-duty drilling needs.The Magnetic Drilling Machine is designed with a powerful motor, integrated cooling system and a compact, lightweight structure. Perfect for a variety of heavy-duty applications that require precision and power.
