Fluxon Distribution Box 63A 400V / 230V

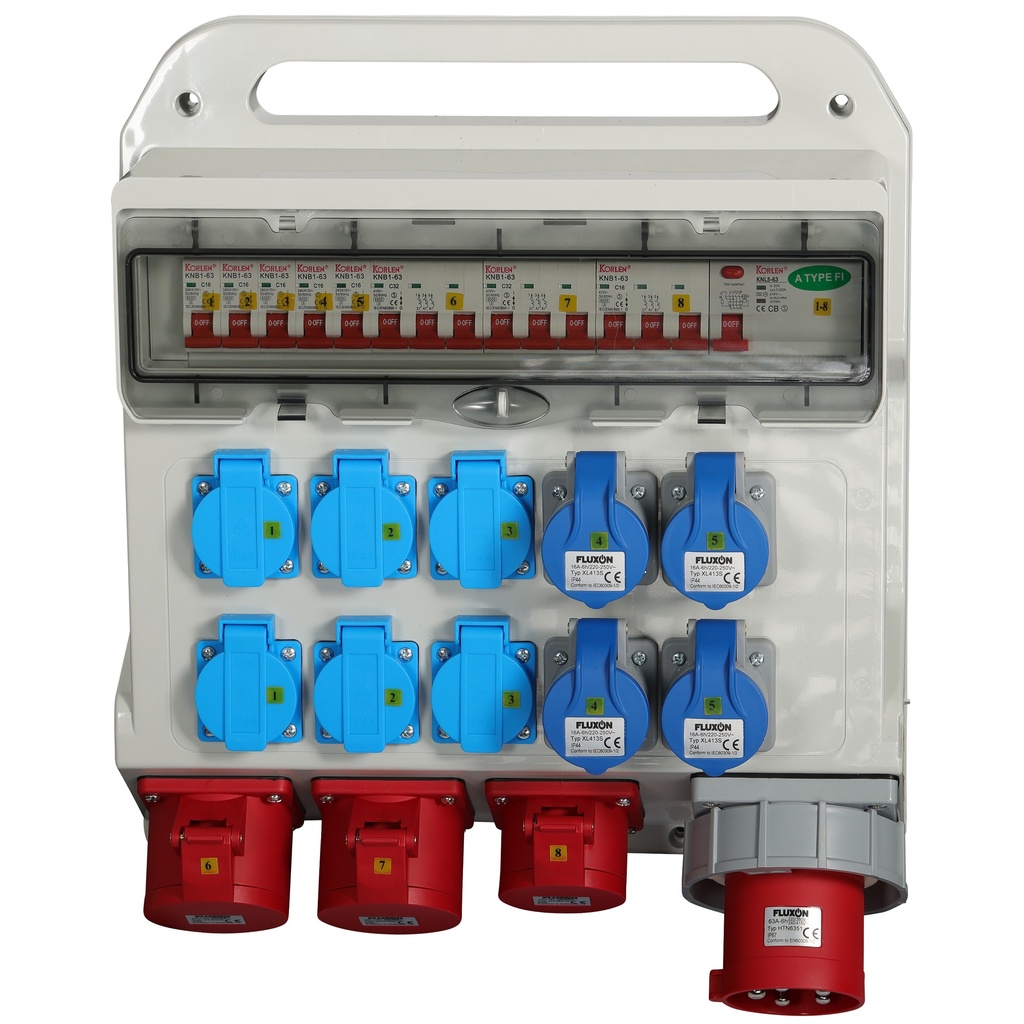

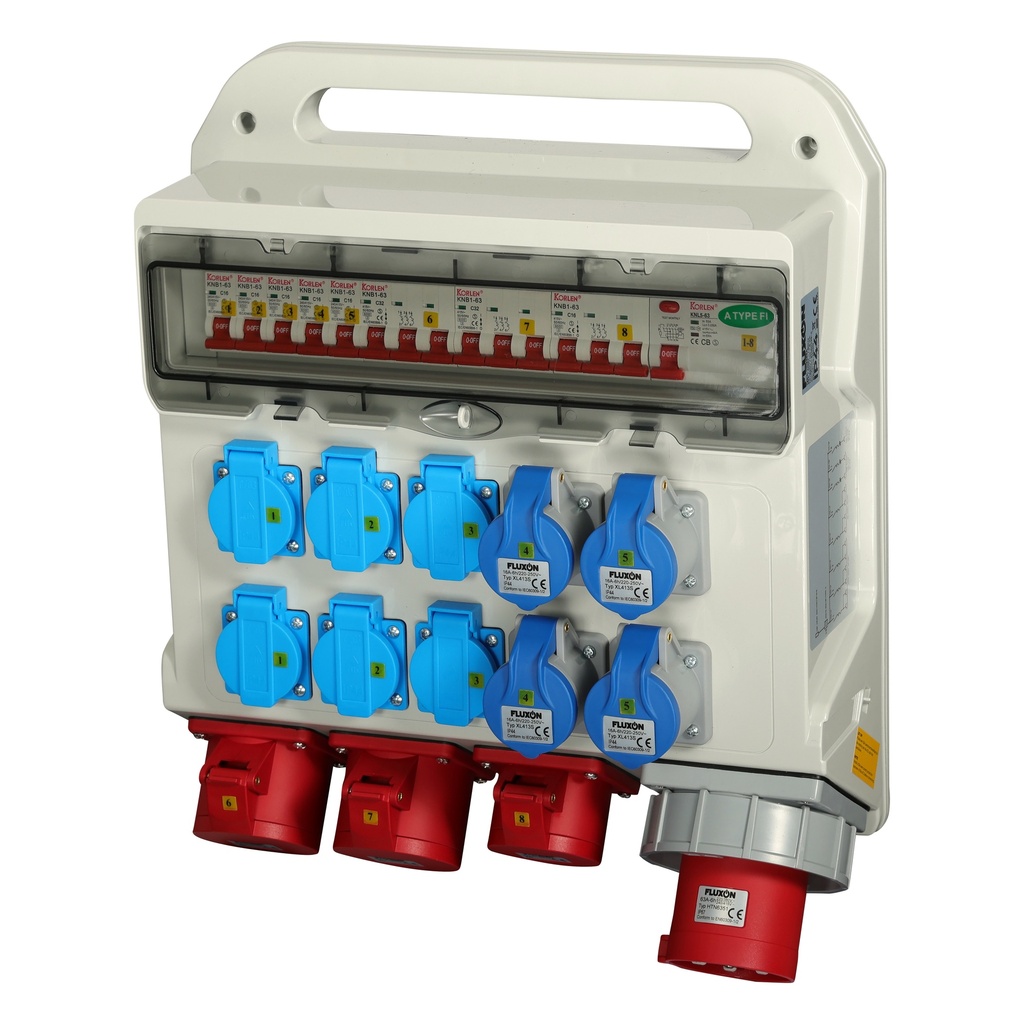

The Fluxon distribution box is designed for the safe distribution of high power on construction sites, in workshops and in temporary installations. The box has a 63 A 5-pin input and distributes this to 10× 230 V outputs and 3× 400 V outputs.

The interior is clearly arranged, each circuit has its own miniature circuit breaker and all outputs are protected by one main 63 A RCD. This ensures safe operation and limits any failure to the correct circuit.

The box has a plastic housing with carrying handle, is IP44 splash proof and IK08 impact resistant. This makes it suitable for mobile use and for fixed wall mounting.

Key features:

• Complete 63 A distribution box according to EN 61439-4


Suitable for temporary and fixed installations where heavy machines and tools need to be powered.

• Extensive circuit protection


Each output has its own miniature circuit breaker, either 16 A or 32 A, a fault only switches off the relevant circuit.

• Main residual current protection (RCD 63 A and 30 mA)


The 4-pole RCD protects the user and prevents dangerous leakage currents.

• IP44 splash proof


Suitable for environments where splashing water may occur.

• IK08 impact resistance

The housing withstands shocks and daily use on construction sites.
